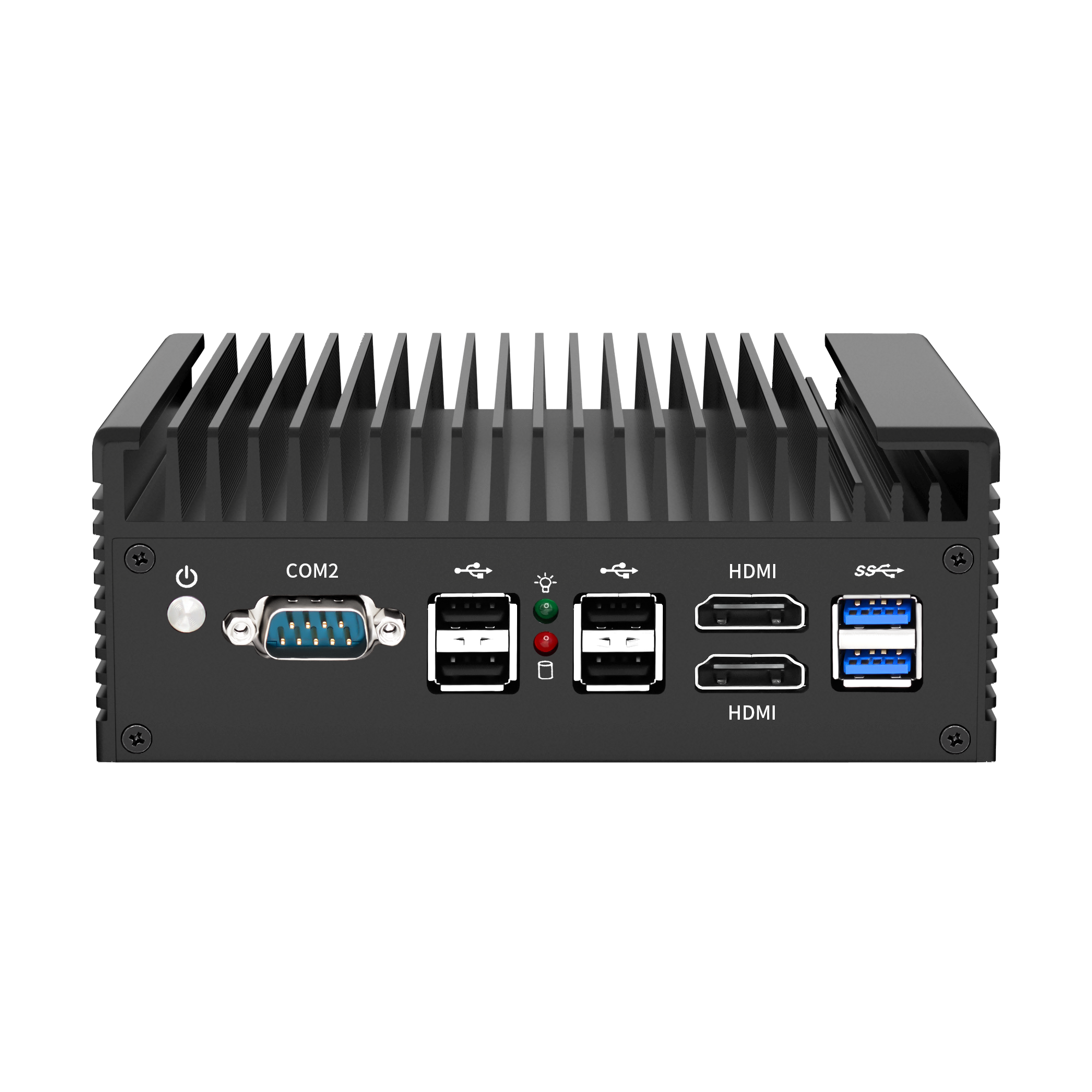

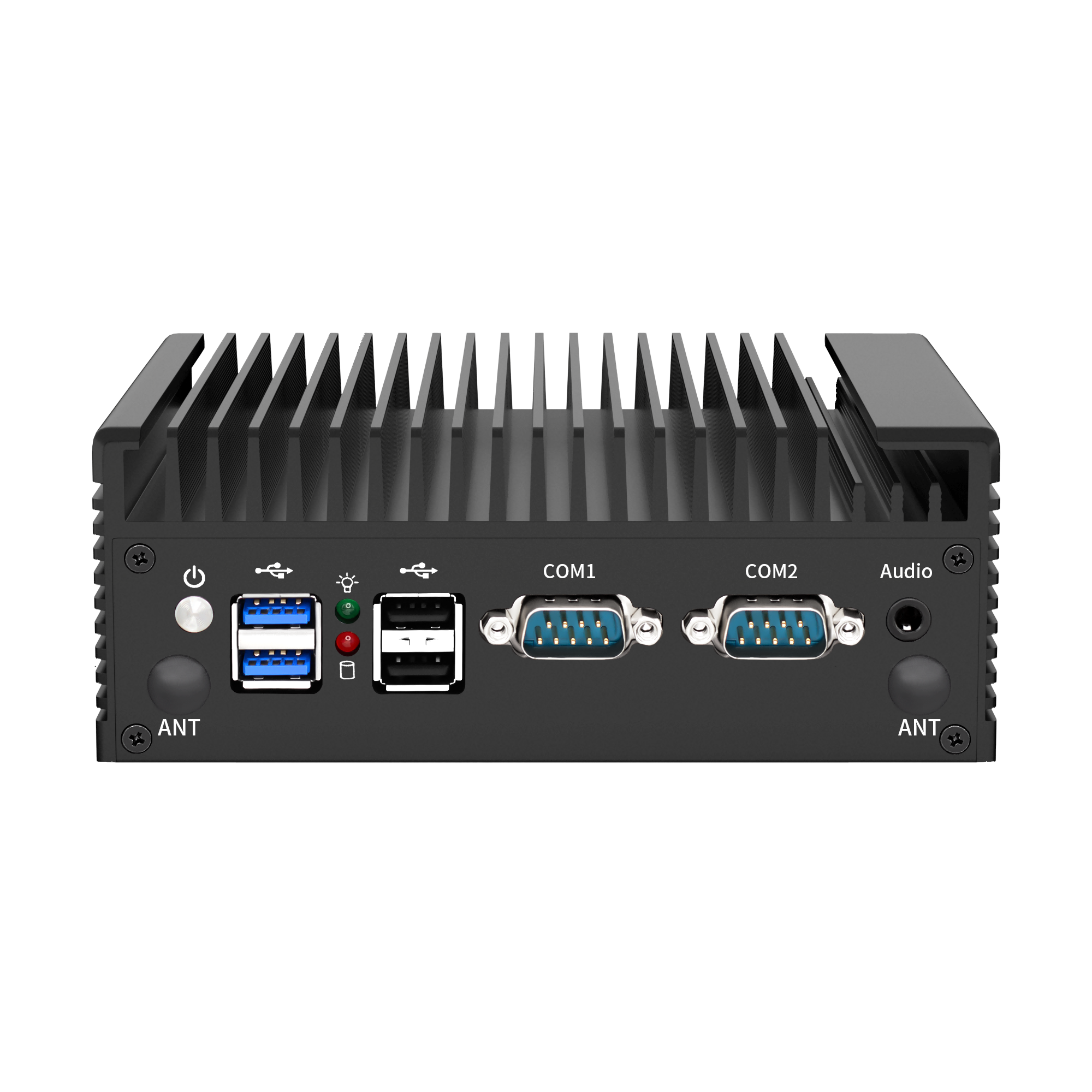

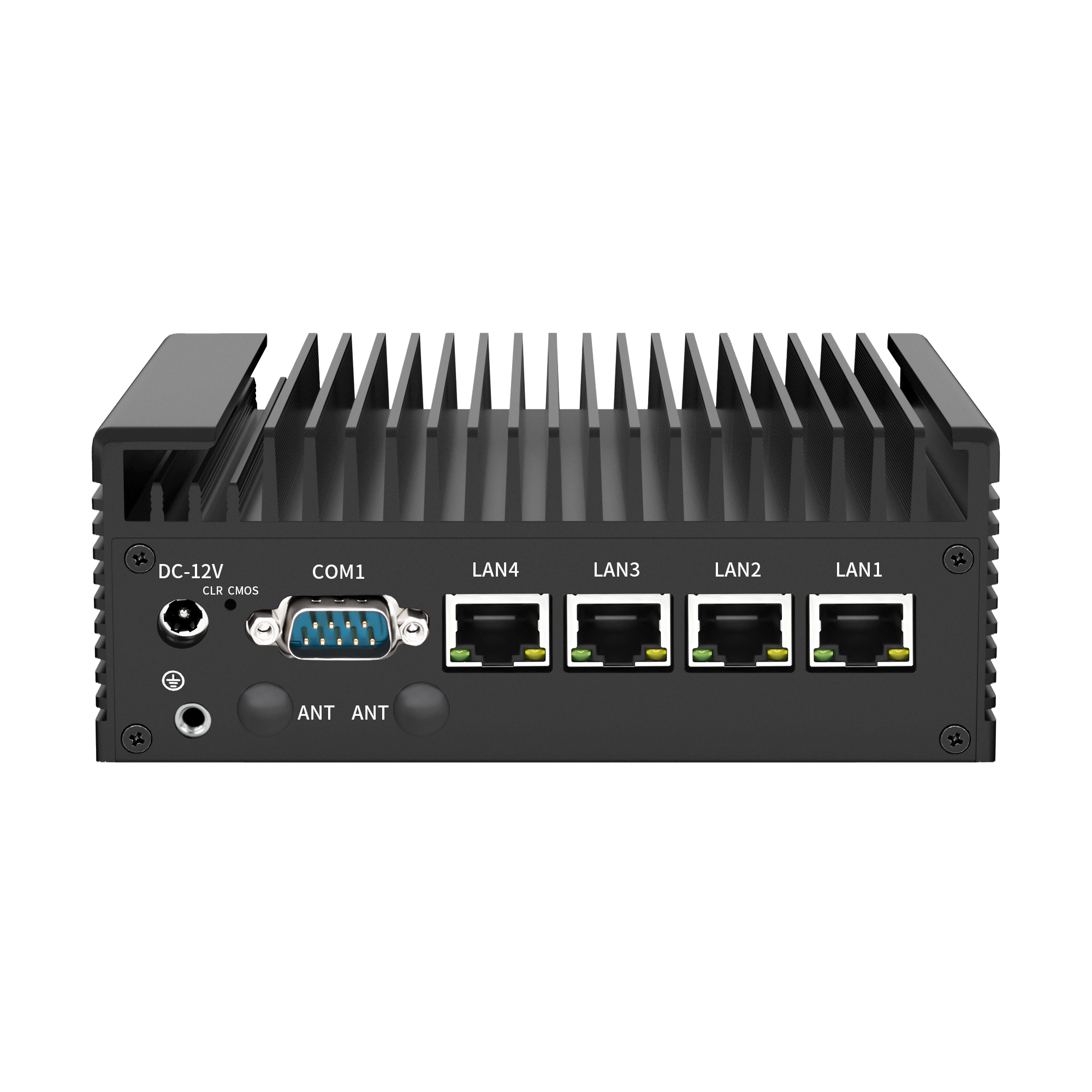

Industrial Mini PC Intel Processor N series N100

Overview

Discover the latest Industrial Mini PC featuring the powerful Intel N-Series N100 processor available in both 2LAN and 4LAN form factors. Designed for industrial applications, this compact PC delivers exceptional performance and energy efficiency, making it ideal for automation, IoT, digital signage, and more.

Specification

CPU: Intel N100 quad-core processor, 7NM, TDP 6W

Memory: Support DDR4-3200MHz, 1*SO-DIMM memory slot 1.2V supports up to 16GB

Hard disk: 1*SATA 3.0, 1*M.2 (Key-M, 2280, PCIe x2 NVMe/ SATA, SSD)

Display: 2*HDMI, 1*DP supports three-screen synchronous display

Mini-PCIE: 1*MINI-PCIE (support 4G module/USB signal WIFI), 1*M.2 (Key-E, 2230, support wifi/Bluetooth)

Voltage: DC12V (2.5 5525)

Working humidity: 5%-95% relative humidity, no condensation

Working temperature: -20℃～60℃

Storage temperature: -20℃～70℃

Operating system: Windows 10/11 or Linux
