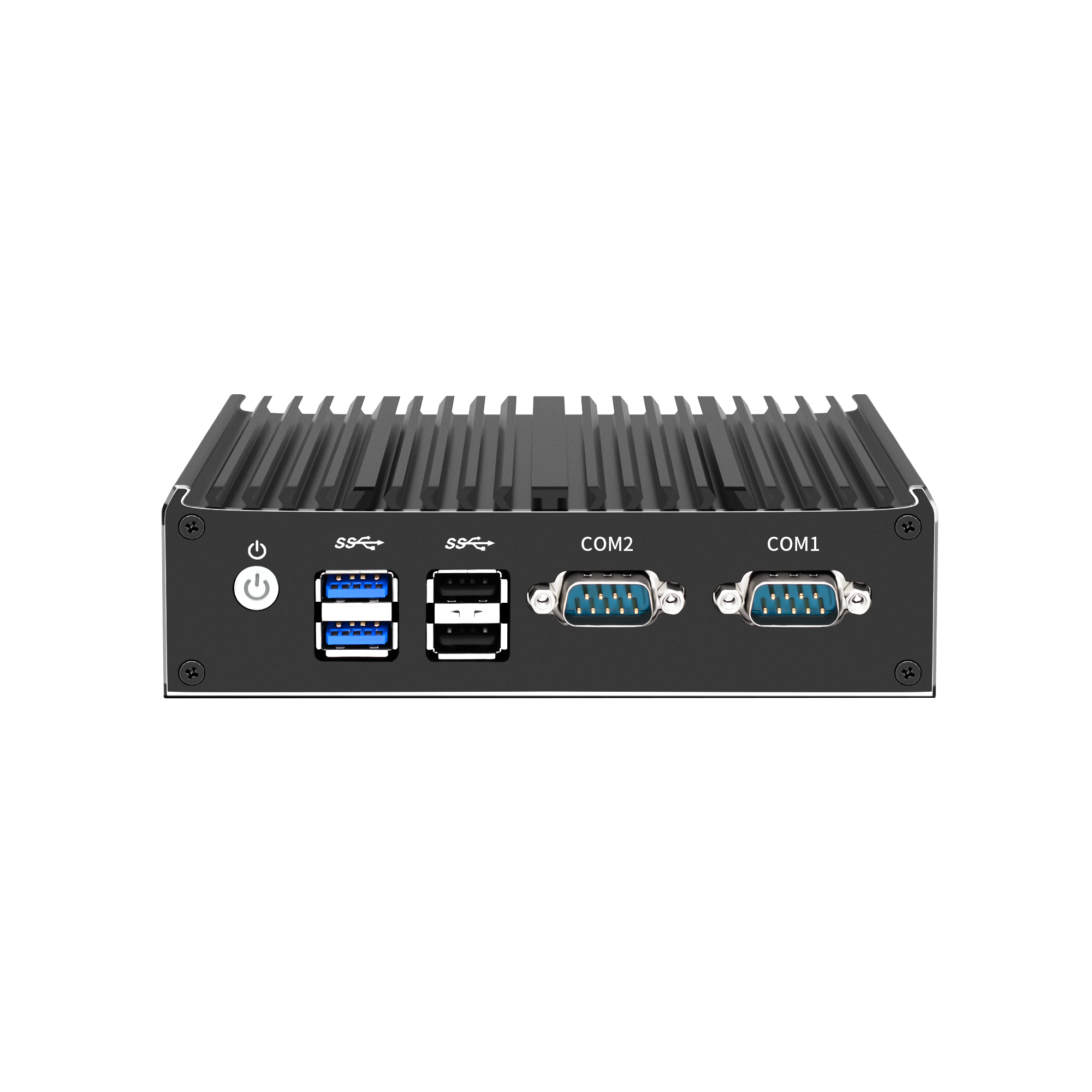

Industrial Mini PC with N2840

Introduction

In today’s fast-paced industrial environment, having a reliable and efficient computing solution is crucial. The Industrial Mini PC with N2840 processor offers a compact, powerful, and energy-efficient option for various industrial applications, from automation systems to data processing.

Specification

CPU: Integrated Intel® Celeron N2840/2.16GHz dual-core processor, TDP 7.5W, compatible with Intel® Baytrail-I/M/D series

Memory: 1*SO-DIMM memory slot, supports single-channel 1600/1333MHz DDR3L, supports up to 8GB

Hard disk: 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps 1* mSATA3.0 slot (long card)

Display: Integrated Intel®UHD Graphics 600 core graphics card; 1* VGA interface and 1*HDMI interface, or 2 HDMI display interfaces; support VGA, HDMI synchronous/asynchronous display

Mini-PCIE: Support WiFi or 4G module

Lan Port: 2* Realtek RTL8111H Gigabit network card (1 network optional), support network wake-up/PXE

Voltage: DC12V(2.5 5525)

Working humidity: 5%-95% relative humidity, no condensation

Working temperature: -20℃～60℃

Storage temperature: -20℃～70℃

Operating system: Windows 7/10/11 or Linux
