15inch/17inch/19inch/21.5inch Integrated Industrial Touch Panel PC

Industrial Touch Panel PC are essential solutions for businesses operating in environments where traditional laptops and tablets cannot endure. Combining ruggedness with cutting-edge technology, they enhance productivity and efficiency across a wide range of industrial applications. With their strong performance capabilities and user-friendly designs, these devices play a crucial role in modernizing operations and facilitating real-time data access in challenging conditions.

LCD Panel: 15’’/17''/19''/21.5'' TFT-LCD

Brightness: 500 cd/㎡

Viewing Angle: 70/70/70/70

Light transmittance: ≥85％

Processor: Optional Celeron j1900 or Core i3i5i7 3/4/5/6/7/8/9 generation CPU

Display: LCD+HDMI dual display, synchronous or asynchronous display

Hard disk: 1 x SATA port,1 x mSATA slot

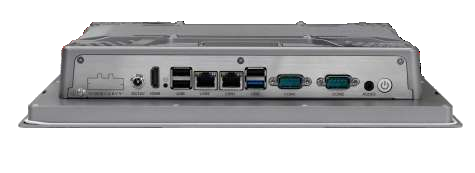

I/O:
1*VGA interface (built-in pin),1*HDMI1.2 interface,1*LVDS interface (default LVDS, optional eDP interface)

2*8821H Gigabit network adapter (optional), supporting network wake up /PXE

4*USB interface (default), expandable up to 9*USB

2* DB9 RS232 Serial port (default)

1* Mini-PCIe slot (long card), supporting WIFI/4G module

1* Mini-PCIe slot (half card), supporting WIFI module

1* Onboard ALC897 7.1 channel high fidelity audio controller, support MIC/Line-out, power amplifier (2 euro 5W dual channel)

1 x 12V DC power input port (default power supply). DC 12V ±5% power supply is used. 9 to 36V wide voltage module is optional

1* external TPM2.0 pin interface 2*7pin (default is not attached)

1*4pin CPU fan interface, 1*4pin system fan interface

1 x JVGA port 1 x 12 pin

1* hard disk power port

1* power amplifier interface 1*4pin

BIOS, 64Mb Flash ROM

Operation system: Windows 7, Windows 10, Linux, and xp

Dimension: 366x290x58.5mm

Weight: 4.2KG
