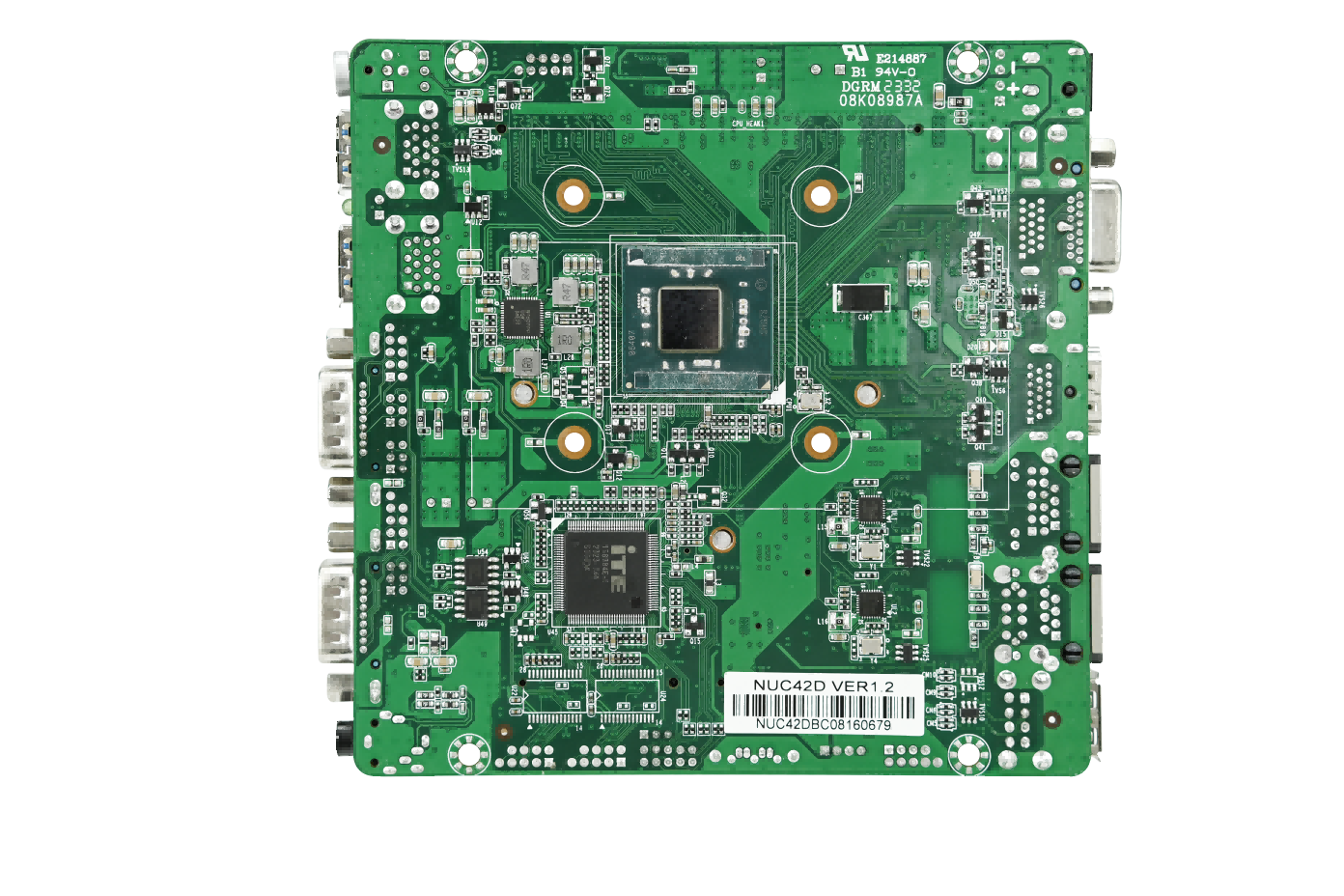

X86 Mainboard Intel®Celeron J4125

Processor: Integrated Intel®Celeron J4125 2.0GHz quad-core processor,TDP 10W compatible with Intel® Gemini Lake-R full range of cpus

Memory: 1* SODIMM slot, single channel 2400MHz DDR4 memory, up to 16GB (default)

Hard Disk: 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps 1* mSATA3.0 slot (long card

Operation system: Windows 10/Linux

Display: Integrated Intel®UHD Graphics 600 core graphics card;

1* VGA port and 1*HDMI port, or 2 HDMI display ports; Supports VGA and HDMI synchronous/asynchronous display

Mini-PCIE: support Wifi or 4G module

Network Card: 2* Realtek RTL8111H Gigabit NIC (one network is optional), supports network wake up /PXE

Audio: Onboard AL897 7.1 channel hi-Fi audio controller with MIC/Line-out support

Expansion slot: 1* Mini-PCIe slot (both half and long cards are supported)

Power Supply: DC12V

Fan interface: Backmounted CPU fanless heat dissipation design

Working humidity: 5%-95% relative humidity, no condensation

Operating temperature: 60℃~-20℃
