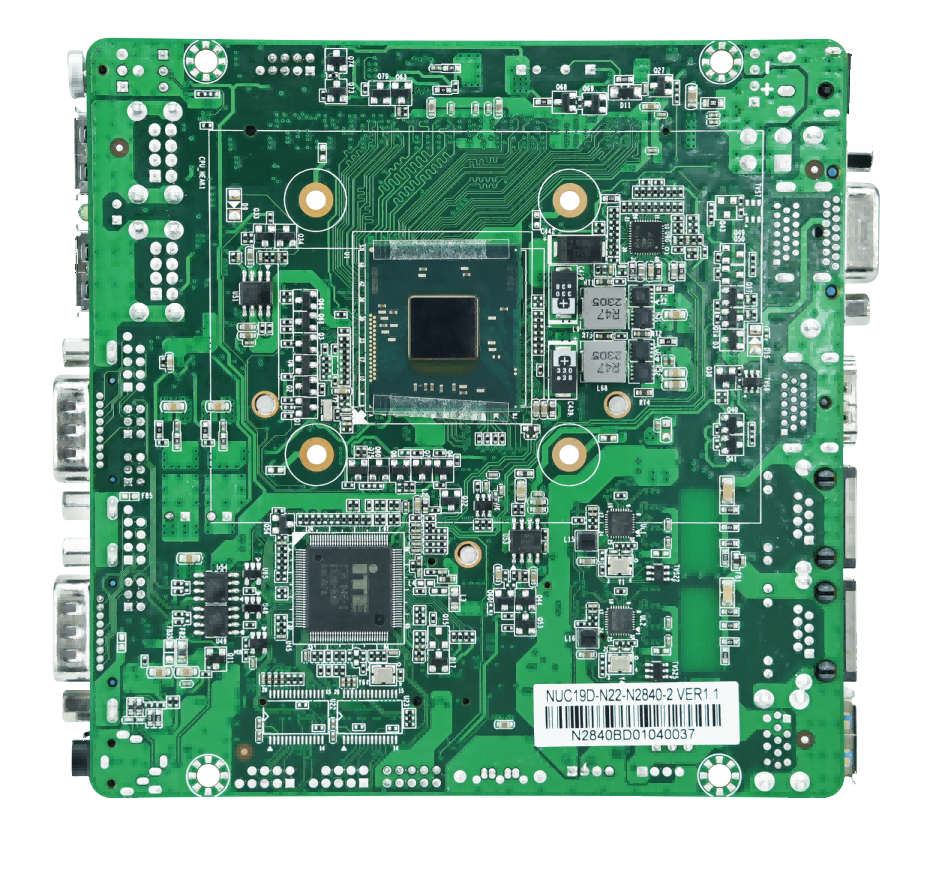

X86 Mainboard Intel®Celeron N2840

Processor: Integrated Intel® Celeron N2840/2.16GHz dual-core processor, TDP 7.5W compatible with Intel® Baytrail-I/M/D series CPU

Memory: 1*SO-DIMM DIMM slot for single-channel 1600 MHZ or 1333 MHZ DDR3L supporting a maximum of 8GB

Hard Disk: 1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps 1* mSATA3.0 slot (long card)

Operation system: Windows7/Windows 10/Linux

Display: Integrated Intel®UHD Graphics 600 core graphics card;

1* VGA port and 1*HDMI port, or 2 HDMI display ports; Supports VGA and HDMI synchronous/asynchronous display

Mini-PCIE: support Wifi or 4G module

Network Card: 2* Realtek RTL8111H Gigabit NIC (one network is optional), supports network wake up /PXE

Audio: Onboard AL897 7.1 channel hi-Fi audio controller with MIC/Line-out support

Expansion slot: 1* Mini-PCIe slot (both half and long cards are supported)

Power Supply: DC12V

Fan interface: Backmounted CPU fanless heat dissipation design

Working humidity: 5%-95% relative humidity, no condensation

Operating temperature: 60℃~-20℃
