OPS i3/i5/i7 6-9th Mini PC

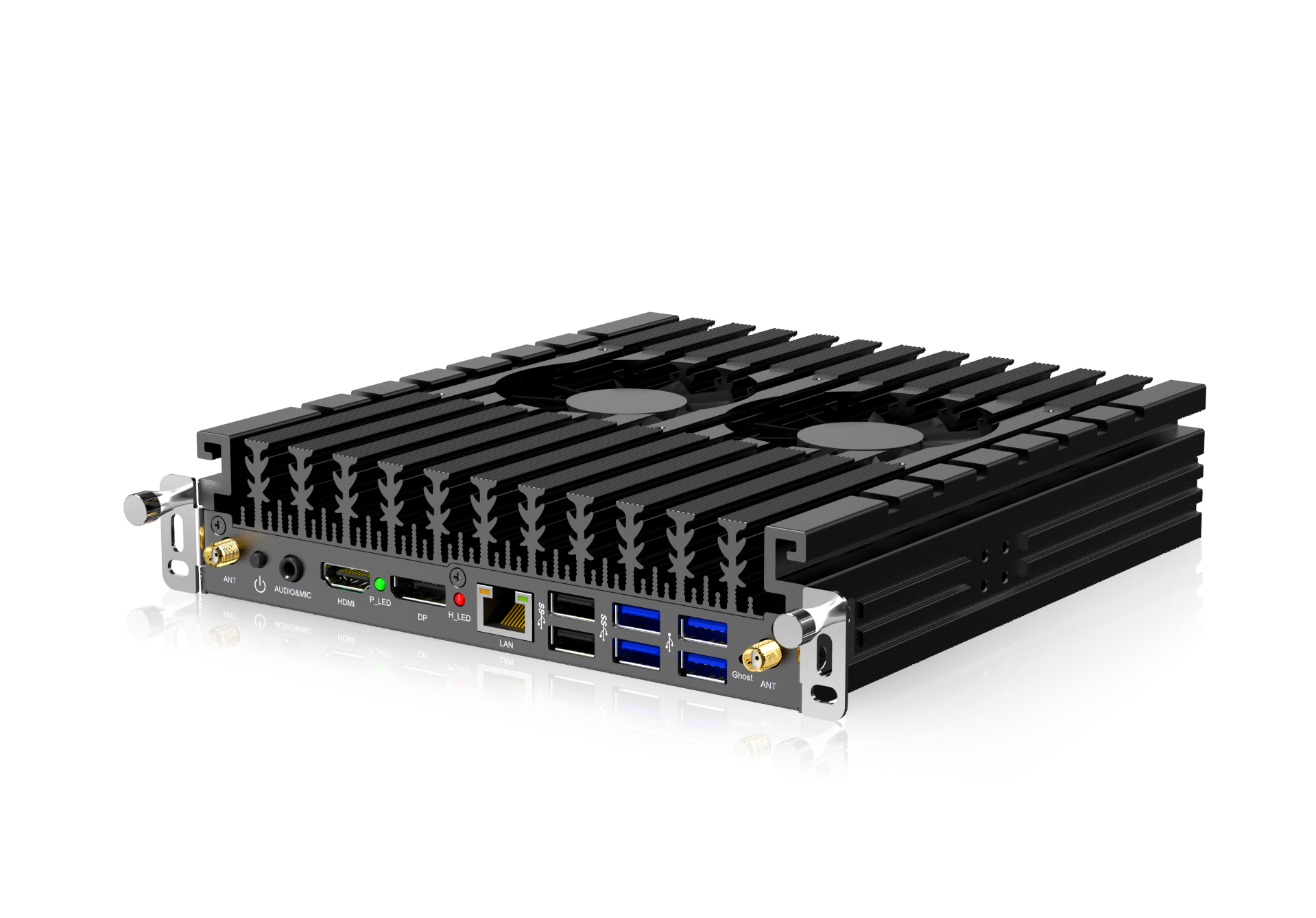

1.Front DP+HDMI display interface, rear HDMI perfectly supports 4K60HZ
2.Dual antennas increase WIFI signal output.
3.Front 6x USB interface, multi-application interface.
4.Support the physical system hardware one key restore function.

Specifications

System Chipset： Intel®H110-CExpress

CPU Model： I3/I5/I7 6th to 9th generation CPU

Memory：DDR4-4G;DDR4-8G;DDR4-16G

Display: DP-Max.3840 x 2160@60Hz; HDMI-Max.3840 x 2160@30Hz; HDMI-Max.3840 x 2160@60Hz

Video card: CPU integrated graphics

Hard Disk: MINI-SATA Solid State Hard Disk Interface128G；256G；512G；1T-Optional

WIFI: M.2 PCIe; Ailian-2.4G/5g dual frequency

Power requirements: DC-IN 12-19V wide voltage, 90W overall power.

Physical characteristics(Size):180x 195x 30MM （180x 195x 42MM-Optional)

Working Temperature: -20℃~60℃

Relative Humidity: 10% - 90℃(non-condensing)

Operating System: Win10/Win11/Linux
