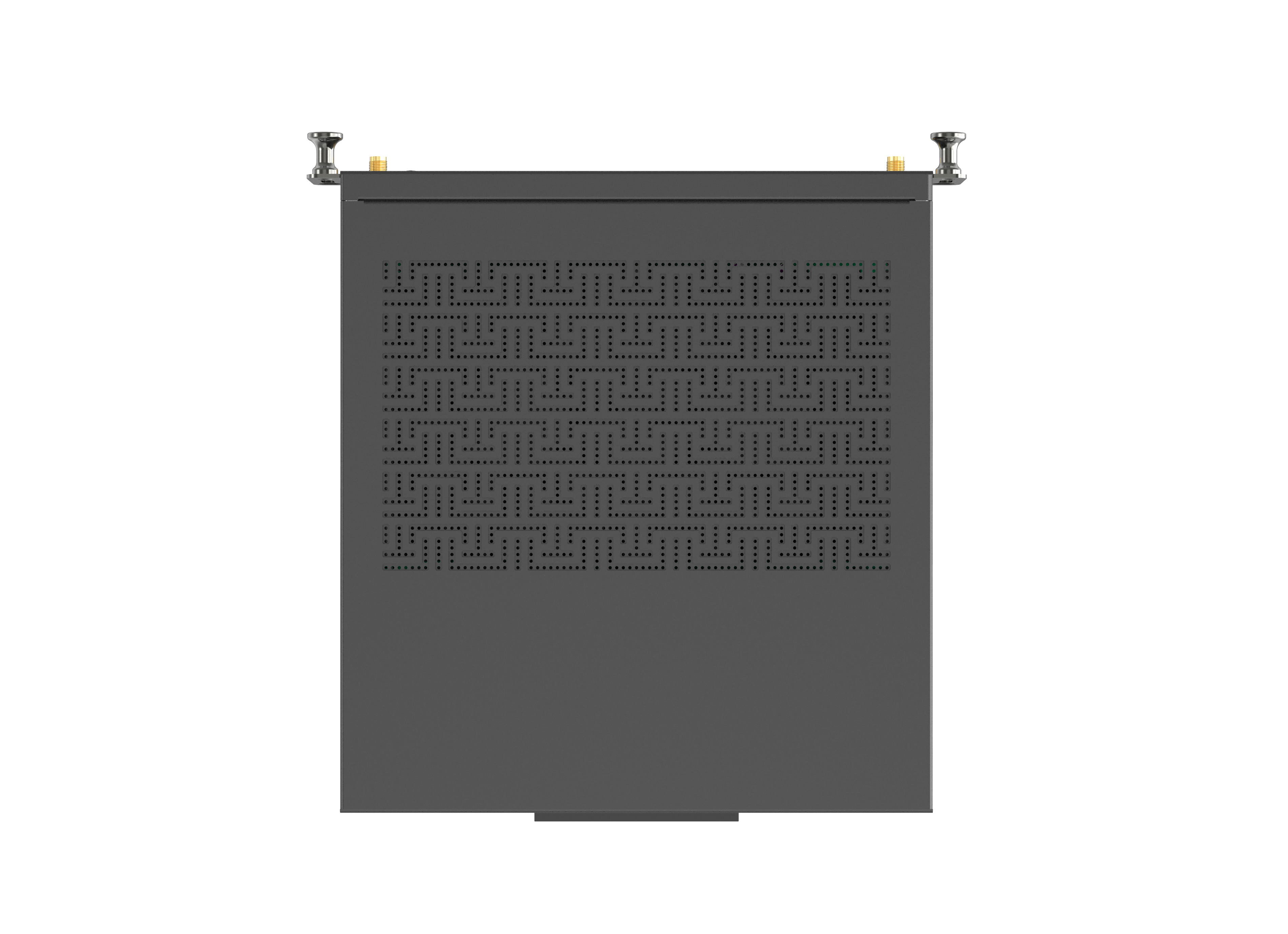

OPS i5/i7 10th Mini PC


1.Front DP+HDMI display interface, rear HDMI perfectly supports 4K60HZ
2.Dual antennas increase WIFI signal output.
3.Front/rear JAE end serial port is optional.
4.Pre-hard and healthy restore, easy to restore the system.

Specification

System Chipset: Intel®H110-CExpress

CPU Model:I5-10200H<Primary Frequency-2.6G><overclockable>

4 Core 8 Threads

I7-10750H<Primary Frequency-2.6G><overclockable>

6 Core 12 Threads

Memory:DDR4-4G;DDR4-8G;DDR4-16G

Display: DP-Max.3840 x 2160@60Hz; HDMI-Max.3840 x 2160@30Hz; HDMI-Max.3840 x 2160@60Hz

Video card: CPU integrated graphics

Hard Disk: MINI-SATA Solid State Hard Disk Interface128G;256G;512G;1T-Optional

WIFI: M.2 PCIe; Ailian-2.4G/5g dual frequency

Power requirements: DC-IN 12-19V wide voltage, 90W overall power.

Physical characteristics(Size):180x 195x 30MM (180x 195x 42MM-Optional)

Working Temperature: -20℃~60℃

Relative Humidity: 10% - 90℃(non-condensing)

Operating System: Win10/Win11/Linux
