Intel® Core Series i5/i7 12th Generation

Operation System: Support Win7/Win8/Win10/Linux

Processor: Intel Sky Lake-U Kaby Lake-U corei5/i7 12th Generation

Memory: 1* DDR4 2666/2933MHz memory slot, the entire board supports a maximum of 32GB

Hard Disk: 1*SATA3.0, 1* M.2(NVME, SATA/PCIE HDD supported)

Operation system: Windows7/Windows 10/Linux

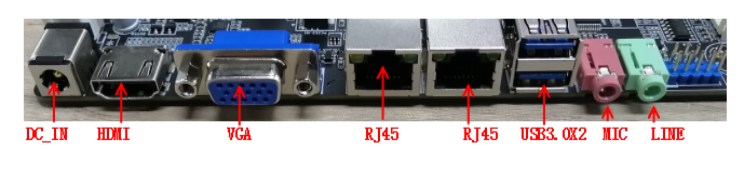

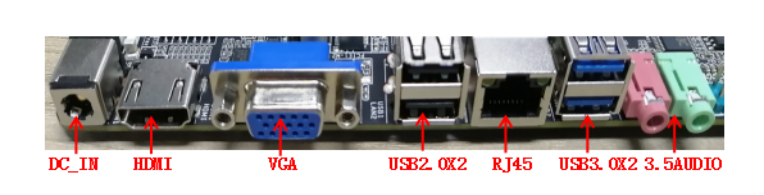

Display: 1*HDMI (DP optional) +1*VGA, supporting synchronous or asynchronous display

Extension interface: 1* full-length MINI-PCI-E(USB 3G/4G communication module)

Wifi: support Wifi or 4G module

Network Card: 1 x Intel i225 2.5G+1 x Intel i219V Gigabit network ports, supporting network wake up. PXE function

Audio: RealtekALC897 7.1 channel HDA encoder with MIC/ line out port support

BIOS: AMI UEFI BIOS

Power Supply: DC12V

Fan interface: Backmounted CPU fanless heat dissipation design

Working humidity: 5%-95% relative humidity, no condensation

Operating temperature: 60℃~-20℃
